Duplex MM OM3 Patch Cord 2.0mm 3.0mm Aqua Jacket With Low Loss LC SC FC ST Connector

Name: Duplex MM OM3 Patch Cord 20mm 30mm Aqua Jacket With Low Loss LC SC FC ST Connector
Brand: Ebocom
Price: 0.4 USD

Duplex MM OM3 Patch Cord 2.0mm 3.0mm Aqua Jacket With Low Loss LC SC FC ST Connector Manufactures

Brand Name : Ebocom

Model Number : OM3 Patch Cord

Certification : ISO

Place of Origin : China

MOQ : 100 Pieces

Price : USD 0.4~1, Meter

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 5000 Pieces per Day

Delivery Time : 7-10 days

Packaging Details : Bag, Carton or Custimized

Core : Duplex 2 core

Cable Diameter : 2.0mm 3.0mm

Fiber Type : OM3

Jacket : PVC/LSZH

Cable Color : Aqua

Lenght : 1m 3m 5m or custmoized

Connector : LC SC FC ST

Contact Now

Product Description

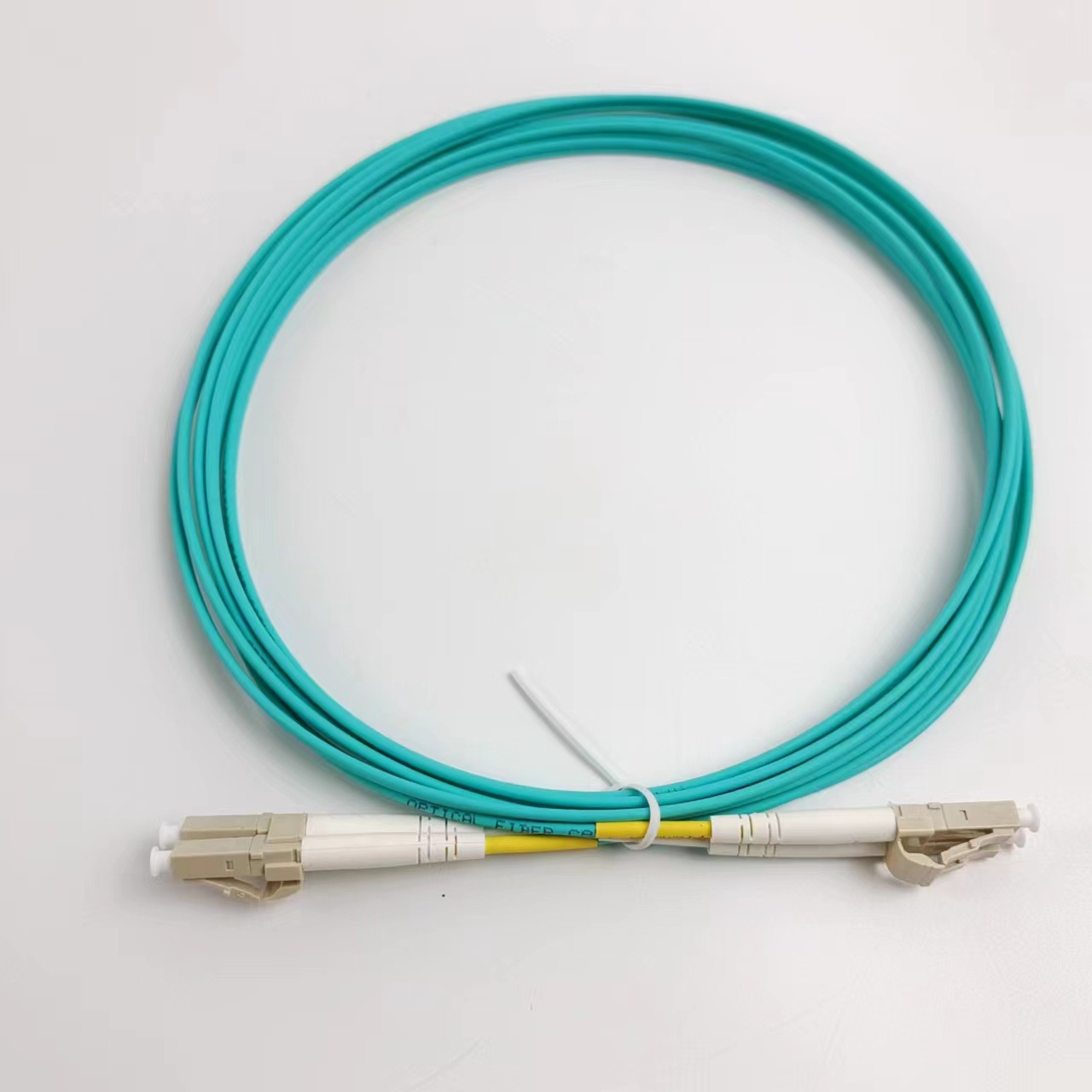

The Duplex MM OM3 Patch Cord is designed for high-speed, short-range data transmission in modern networks. Available in both 2.0mm and 3.0mm diameters, this OM3 multimode patch cord provides reliable, low-loss performance for data centers, LAN, and SAN applications. Equipped with aqua-colored jacket for easy identification, it is ideal for high-bandwidth applications in 10G and 40G Ethernet networks. Connectors such as LC, SC, FC, and ST are available, each with low insertion loss, ensuring stable and efficient connections.

Duplex MM OM3 Patch Cord 2.0mm 3.0mm Aqua Jacket With Low Loss LC SC FC ST Connector

Key Features:

Duplex OM3 Multimode Fiber: Enables high-speed data transmission, suitable for short-distance 10G/40G Ethernet networks.

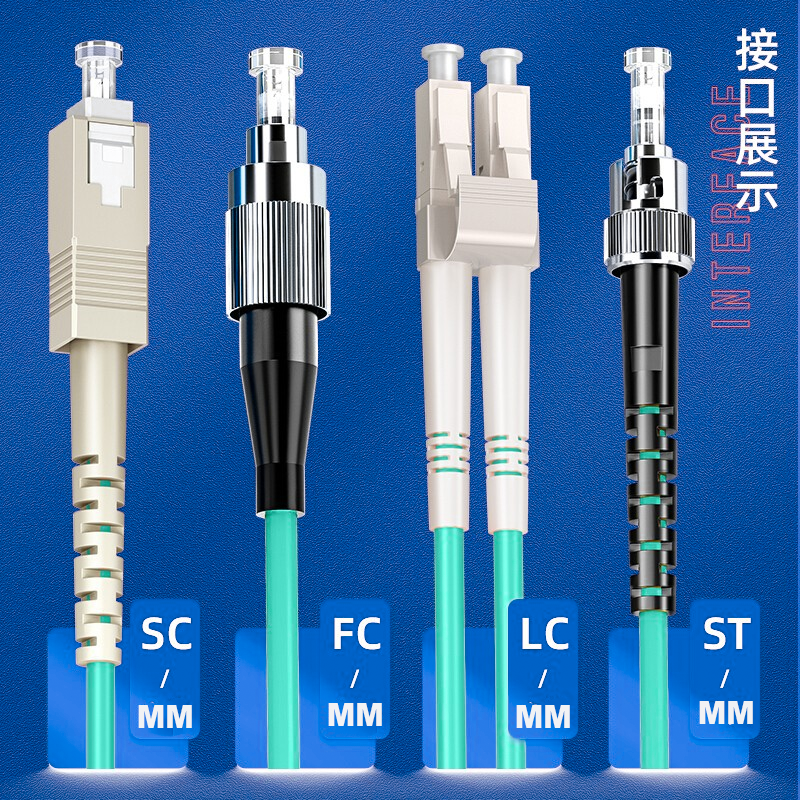

Low Loss Connectors: Available with LC, SC, FC, or ST connectors to meet various network equipment standards.
Aqua Jacket: Distinct color for easy identification in complex setups.

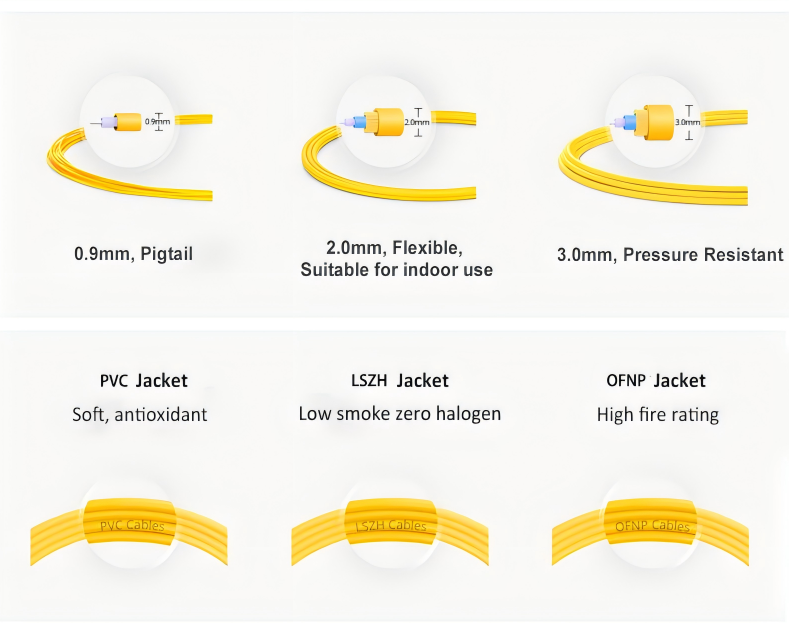

2.0mm and 3.0mm Diameter Options: Provides flexibility in installation, supporting a variety of cable routing needs.

Applications:

High-speed data centers and server connections
Local Area Networks (LAN) and Storage Area Networks (SAN)
High-bandwidth short-distance transmission (up to 300m for 10G Ethernet)
Telecommunications and multimedia transmission

Technical Specifications:

Specification	Details
Fiber Type	Multimode (OM3)
Core Configuration	Duplex
Connector Type	LC, SC, FC, ST
Insertion Loss	≤ 0.2 dB
Return Loss	≥ 35 dB
Cable Diameter	2.0mm or 3.0mm
Jacket Material	Aqua PVC/LSZH (Low Smoke Zero Halogen)
Operating Temperature	-20°C to +70°C
Max Transmission Distance	Up to 300m (10G Ethernet)

Benefits of Duplex OM3 Patch Cord:

High-Speed Transmission: OM3 multimode fiber supports high-bandwidth applications, ideal for data centers requiring fast and stable connections.
Low Insertion Loss: The high-quality LC, SC, FC, and ST connectors offer low insertion loss, ensuring reliable and efficient data flow.
Flexible Diameter Options: Choose between 2.0mm or 3.0mm based on installation requirements, providing easy routing and handling.
Distinct Aqua Jacket: The LSZH aqua jacket ensures low smoke and halogen emissions, enhancing safety in indoor settings and making identification easy.

Contact Us:

For more information or to request a quote on our Duplex MM OM3 Patch Cord 2.0mm 3.0mm Aqua Jacket with Low Loss LC SC FC ST Connector, please contact our sales team. We are here to provide high-quality, reliable solutions tailored to your networking needs.
